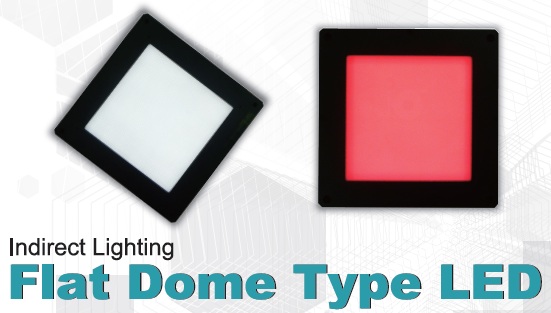

Flat Dome-type LED

The flat dome-type LED is lightweight and thin. It provides the same light-emitting surface of the coaxial light (IFV series) and dome type (DO series), except that being thinner, it requires less installation height. Its uses include inspection of PCB circuits, mobile phone keypads, reflective materials, and print on the bottom of alumium cans or batteries.





Available Models

Model Color Power consumption Weight Aperture
diameter
FDO-100R Red 12V/3.8W 130g 47mm
FDO-100W/B/G White/Blue/Green 12V/5.7W
